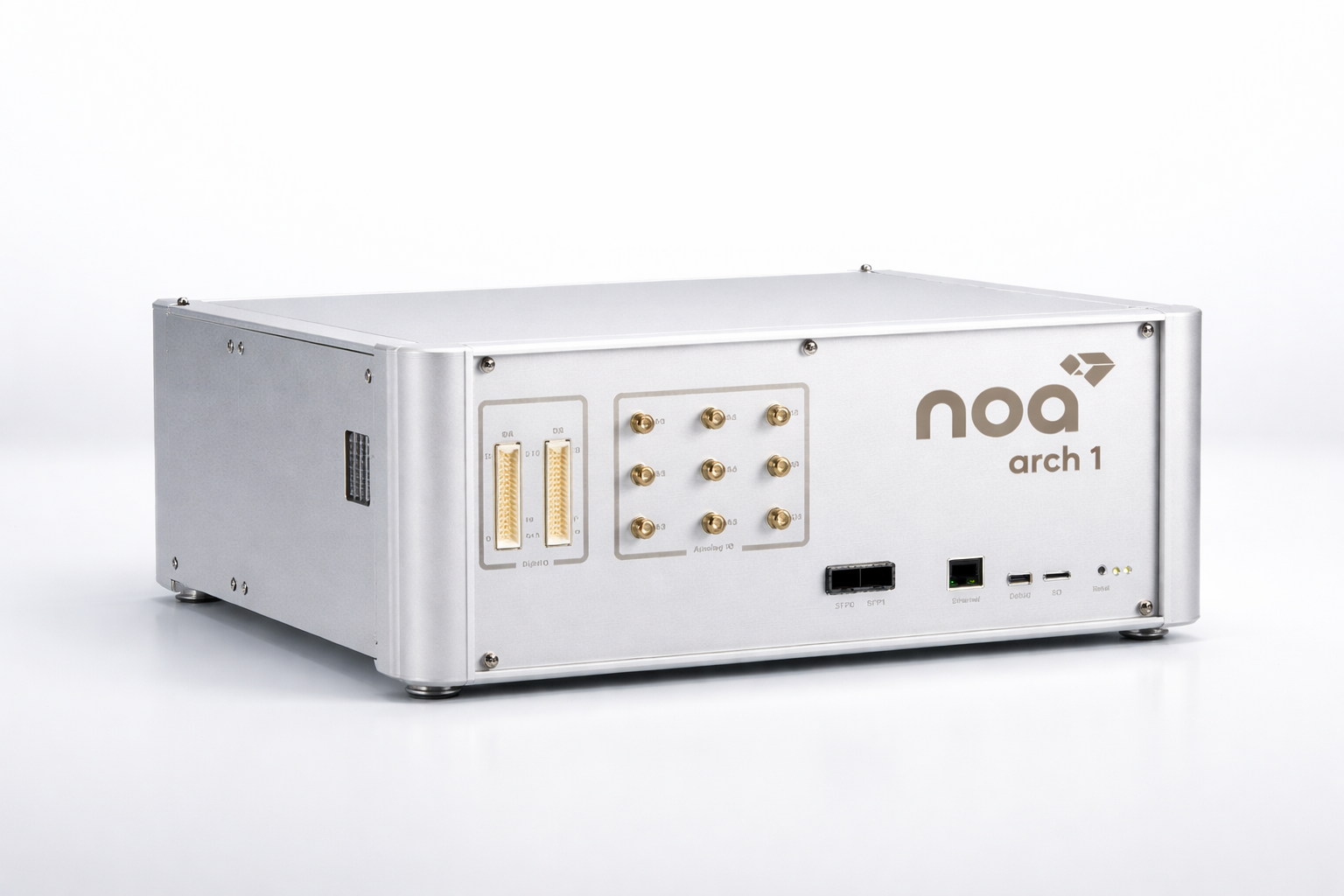

Unlock the full potential of your projects with the Noa Toolbox. Designed for high precision and fast, reliable performance, it empowers you to tackle complex tasks with ease, ensuring seamless integration across all applications.
Take your innovations to the next level with Noa Toolbox. Contact us today to discuss how our solution can be tailored to meet your unique project needs.
Contact us for a quote
Key Technical Features
Powerful FPGA-Accelerated Processing
- Processor: Utilizes Xilinx Zynq™ UltraScale+™ MPSoC for efficient, high-speed parallel processing, ideal for time-sensitive tasks.
- Real-Time Performance: Ensures deterministic execution, essential for critical real-time applications in fields like automotive and industrial control.
Comprehensive Analog & Digital I/O
- Analog Outputs: Supports up to 12 channels of 14-bit, 100 MSPS analog outputs for high-quality signal generation.
- Analog Inputs: Offers 12 channels of 14-bit, 100 MSPS analog inputs, ideal for fast and accurate signal acquisition.
- Latency: Provides sub-microsecond latency for quick signal capture and processing.
- Digital I/O: 52 configurable digital I/Os to meet various application needs.
Optimized for Power Electronics and Control Systems
- Real-Time Simulation: Executes high-fidelity simulations of power grids, motor drives, and inverters with high-frequency switching capabilities.
- Closed-Loop Control Validation: Performs real-time feedback analysis with ultra-low latency for precise control system validation.
- PWM Generation: High-speed PWM generation, with external synchronization for seamless integration with control systems.
Intuitive Software and Model Integration
- PYNQ 3.0 Image: Comes pre-configured with PYNQ 3.0 for a simple and intuitive setup experience.
- Software Compatibility: Supports MATLAB/Simulink, Python, and VHDL/Verilog for FPGA customization, offering flexibility in model development.
- Free FPGA IPs: Access to a library of free FPGA intellectual property (IP) cores for easy expansion and functionality.
Scalable and Modular Architecture
- Modular Design: Designed for easy upgrades and expansions, allowing the system to grow with evolving needs.
- FPGA Reconfigurability: Enables tailored signal processing and custom hardware acceleration for specific application requirements.
High-Performance Storage and Networking
- Storage: Equipped with a 256 GB NVMe SSD to store large datasets and perform high-speed logging for detailed analysis.
- Dual SFP+ 10 Gbps connectors for high-bandwidth networking, perfect for multi-node distributed HIL applications.
- 1Gbps Ethernet link for smooth integration into industrial networks and cloud-based workflows.
The Noa Toolbox is designed to provide powerful, flexible, and efficient solutions for high-performance real-time processing, ideal for applications requiring rapid data handling and precision control.
